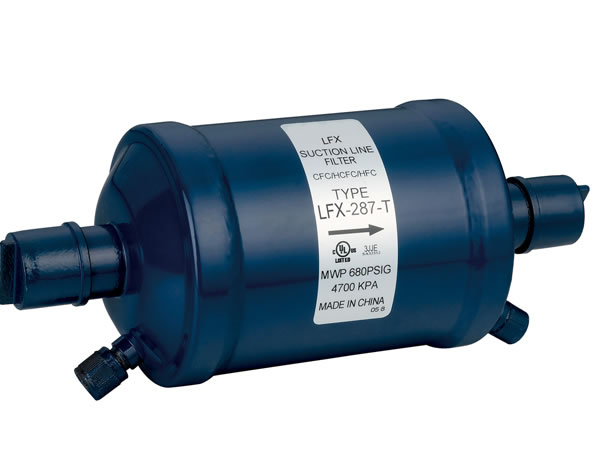

Our suction line filter drier is an efficiently designed receiver drier that uses a high quality filter core and provides a larger filtering area. In addition, it is easy and quick to install.
This HVAC filter drier is also equipped with a diffuser that protects refrigerants from abrasions. Its quality, efficient and reliable performance makes it an ideal A/C receiver dehydrator for protecting the compressor of refrigerating systems.

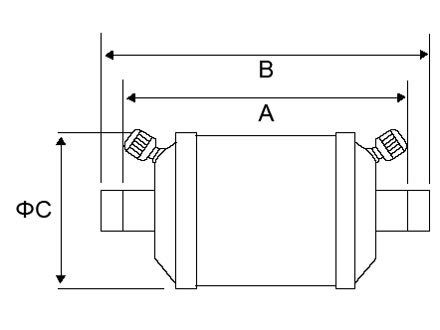

Technical Specifications of Suction Line Filter Drier
| Part No. | Connection size & type | Dimensions (inches) | ||
| A | B | C | ||
| 3/8 ODF | 4.40 | 5.59 | 3.50 | |
| 1/2 ODF | 4.43 | 5.69 | 3.50 | |
| 5/8 ODF | 4.92 | 6.38 | 3.50 | |
| 3/4 ODF | 6.18 | 7.75 | 3.50 | |
| 7/8 ODF | 6.22 | 7.87 | 3.50 | |
| 1-1/8 ODF | 6.60 | 8.25 | 3.50 | |
| 1-3/8 ODF | 8.84 | 10.81 | 3.50 | |
| 1-5/8 ODF | 8.50 | 10.50 | 3.50 | |
